EN 1092-1 Norm

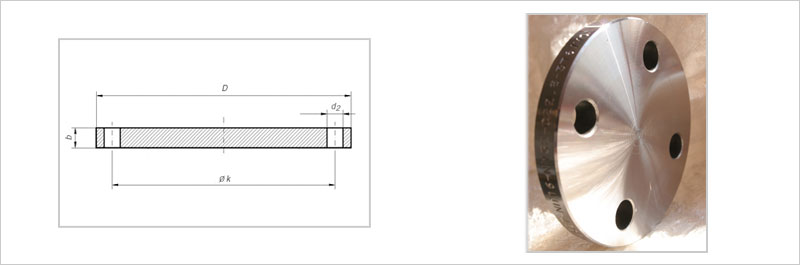

EN Norm 1092-1 Type 05 PN10
| Rated Diameter | Flange | Screws | Weight of a flange (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| k | D | b | d2 | Thread | Bolt holes | KG | |
| 200 | 295 | 340 | 24 | 22 | M20 | 8 | 16,500 |
| 250 | 350 | 395 | 26 | 22 | M20 | 12 | 24,100 |
| 300 | 400 | 445 | 26 | 22 | M20 | 12 | 30,800 |
| 350 | 460 | 505 | 26 | 22 | M20 | 16 | 39,600 |
| 400 | 515 | 565 | 26 | 26 | M24 | 16 | 49,400 |
| 450 | 565 | 615 | 28 | 26 | M24 | 20 | 63,000 |
| 500 | 620 | 670 | 28 | 26 | M24 | 20 | 75,200 |
| 600 | 725 | 780 | 34 | 30 | M27 | 20 | 124,000 |
| 700 | 840 | 895 | 38 | 30 | M27 | 24 | 183,000 |
| 800 | 950 | 1015 | 48 | 33 | M30 | 24 | 297,000 |
| 900 | 1050 | 1115 | 50 | 33 | M30 | 28 | 374,000 |
| 1000 | 1160 | 1230 | 54 | 36 | M33 | 28 | 492,000 |
| 1200 | 1380 | 1455 | 66 | 39 | M36 | 32 | 842,000 |
